All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
| محل منبع | شاندونگ، چین |
|---|---|
| نام تجاری | OEM |
| گواهی | ISO TLC |
| شماره مدل | ADSS -48B1.3 |
| مقدار حداقل تعداد سفارش | 2000 متر |
| قیمت | EXW $0.3/M |
| جزئیات بسته بندی | 1. طبل چوب آهنی یا طبل چوبی غیر فوم ، طبل چوبی معمولی. 2. اندازه طبل را می توان طراحی کرد ، جزئیات م |
| زمان تحویل | 5-8 روز |
| شرایط پرداخت | T/T، L/C |
| قابلیت ارائه | 5000 کیلومتر در روز |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsAPP:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| نوع فیبر | G652D/G657A1 A2 | تعداد فیبر | 2-288 هسته |
|---|---|---|---|
| عضو قدرت | FRP | ژاکت | پلی اتیلن |
| رنگ ژاکت | مشکی | برند | OEM |
| برجسته کردن | ADSS Fiber Optic Cable,Networking ADSS Fiber Optic Cable,Self Supporting ADSS Fiber Optic Cable,Networking ADSS Fiber Optic Cable,Self Supporting ADSS Fiber Optic Cable |
||
توضیحات محصول
Description
ADSS cable, which stands for All-Dielectric Self-Supporting cable, is a type of fiber optic cable designed for aerial applications, particularly in environments near high-voltage power lines. It's unique because it doesn't require a separate messenger wire for support, making it ideal for one-step installation on poles and towers
Features&Application
1.Utility Companies:
ADSS cables are widely used by utility companies for transmitting data and voice communications over power lines
2.Telecommunications:
They are also used by telecommunications companies for providing high-speed internet and other communication service
3.Campus Backbones:
ADSS cables are suitable for establishing reliable communication links within campuses and between building
4.Long-Span Applications:
ADSS cables, particularly those with long-span designs, can be used for installations where long distances need to be covered between support structure

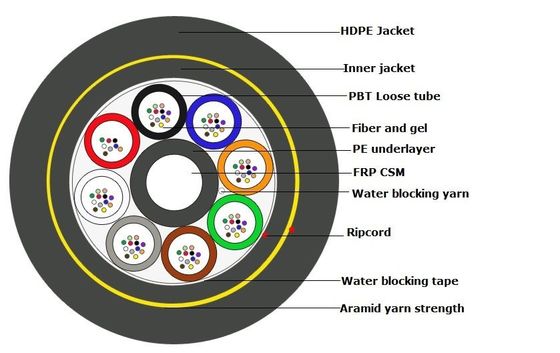

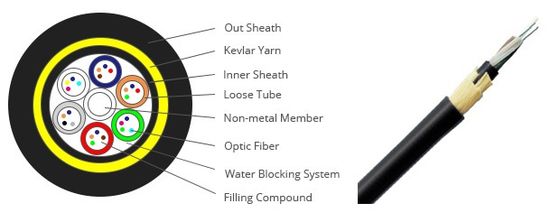

Specification
| Fiber Count | 12 | 24 | 36 | 48 | 96 | 144 | |
| Fiber Count Per Tube | 6 | 6 | 6 | 12 | 12 | 12 | |
| Loose Tube | Material | PBT | |||||
| Water Blocking Material | Fiber Jelly | ||||||
| Counts | 2 | 4 | 6 | 4 | 8 | 12 | |
| Central Strength Member | Material | FRP Rod (Coated with PE if needed) | |||||
| Counts | 2.2 | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | |
| Overall Diameter (nom.)(mm)(±0.2) | 10.3 | 10.4 | 10.4 | 11 | 12.3 | 14.9 | |
| Outer Jacket | Material | HDPE, Black | |||||
| Nominal Thickness (mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Cable Weight | Kg/Km | 73 | 76 | 76 | 86 | 109 | 162 |
| Temperature Range | Operation | -30°C~+70°C | |||||
| Storage | -30°C~+70°C | ||||||
| Installation | -10°C~+60°C | ||||||
