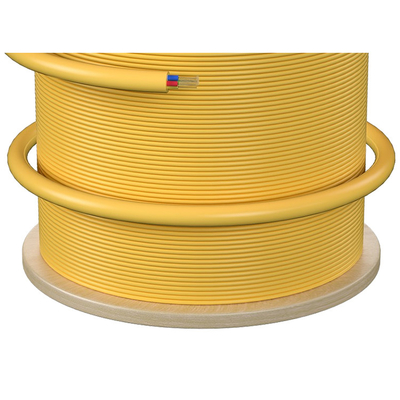

Indoor Optic Fiber Cable GJFJH G657A 2 4 12 24Core SM MM OM1 OM2 OM3 OM4 OM5 Networking
| محل منبع | شاندونگ ， چین |
|---|---|
| نام تجاری | EBOCOM |
| گواهی | ISO TLC |
| شماره مدل | gjfjh |
| مقدار حداقل تعداد سفارش | 2000 متر |
| قیمت | EXW ≥2000m $0.2/M ≥5000m $0.19/M |
| جزئیات بسته بندی | 1. طبل چوب آهنی یا طبل چوبی غیر فوم ، طبل چوبی معمولی. 2. اندازه طبل را می توان طراحی کرد ، جزئیات م |
| زمان تحویل | 5-8 روز |
| شرایط پرداخت | t/t |
| قابلیت ارائه | 5000 کیلومتر در روز |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsAPP:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| مدل | کابل فیبر نوری بافر محکم | مارک | eBoCom/OEM |
|---|---|---|---|
| طول | سفارشی | ژاکت کابل | PVC، LSZH، PE |
| نوع فیبر | SM/MM | عضو قدرت | نخ زاویه ای |
| برجسته کردن | indoor fiber optic cable G657A,multicore fiber optic cable SM MM,indoor networking cable with warranty,multicore fiber optic cable SM MM,indoor networking cable with warranty |
||
توضیحات محصول
Product Introduction:
Indoor fiber optic cable are optical cables laid in buildings. It has low tensile strength and light weight, which is economical for establishing communication network in buildings. It’s mainly used for communication indoors, computers, switches and end user equipment in buildings.
The distance of indoor fiber optic cable is generally not long, and multimode fiber cable can be used. Optical fibers like same multimode bandwidth, gigabit and 10G and strength member like non-metallic reforced core and aramid yarn are often used for indoor cable. G.657 fiber has high performance on the bending resistance which is perfect for indoor wiring. For indoor wiring, connecting equipment, fiber patch cord, drop cable and distribution cable.

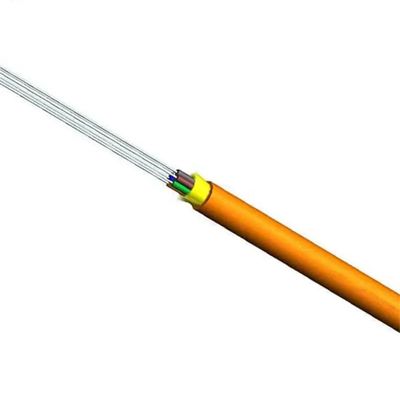

Indoor-Outdoor Tight Buffered cable incorporates the advantages of 900um Tight Buffered fiber found in Inside-Plant Cable with the enhanced Mechanical and Environmental attributes found in cable suitable for outdoor deployments.
Features:
1.Enhanced protection: The tight buffer layer provides excellent resistance to physical damage, moisture, and environmental pressure, thereby ensuring the integrity and reliability of the optical fiber.2.Higher flexibility: Due to the adoption of a tight buffer layer, the flexibility of this cable has been enhanced, thereby simplifying the termination and handling operations during installation and maintenance.
3.Compact dimensions: Due to its compact structure, the overall diameter of the tight buffer cable is smaller, enabling efficient deployment in environments with limited space.
4.Direct termination capability: The design of the tight buffer layer allows the connector to be directly connected to the optical fiber without the need for additional protective components such as connector boxes.
Applications:
High-quality aramid fiber over the tensile-resistant jacket enhances the cable's tensile strength.Permitted tensile strength (N): 200 long-term, 660 short-term.
Crushing strength (N/100mm): 1000 long-term, 300 short-term.
Bend radius: 30D long-term, 15D short-term.
Storage and operating temperature: -20°C to 60°C.
Fiber attenuation:
OS2: ≤ 0.36 dB/km at 1310 nm, ≤ 0.23 dB/km at 1550 nm.
OM1: ≤ 3.0 dB/km at 852 nm, ≤ 1.0 dB/km at 1300 nm.
OM2: ≤ 3.0 dB/km at 852 nm, ≤ 1.0 dB/km at 1300 nm.
OM3: ≤ 3.0 dB/km at 852 nm, ≤ 1.0 dB/km at 1300 nm.
Options:
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 muti mold fiber.
