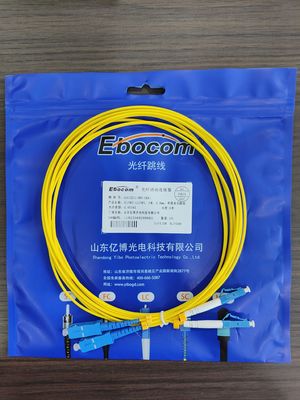

Patch Cord Fiber Optic Cable SC/LC/ST LSZH PVC Jacket OM1 OM2 OM3 OM4 for Networking
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsAPP:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| نوع فیبر | G652D/G657A1 A2 | شمارش فیبر | سیمپلکس/دوبلکس |
|---|---|---|---|
| ژاکت | LSZH PVC | رنگ ژاکت | زرد ، سبز ، (OEM) |
| نام تجاری | OEM | اود | 2.0 میلی متر |
| برجسته کردن | fiber optic patch cord SC LC ST,LSZH PVC jacket fiber optic cable,OM1 OM2 OM3 OM4 networking patch cord,LSZH PVC jacket fiber optic cable,OM1 OM2 OM3 OM4 networking patch cord |
||
توضیحات محصول
Products introduction
Description
A patch cord, also known as a fiber optic patch cord, is a short cable with connectors at both ends used to connect electronic or fiber optic devices for signal routing. There are many types of patch cords, including Ethernet patch cords, fiber optic patch cords, and audio/video patch cords, each designed for a specific application.
Connector Types

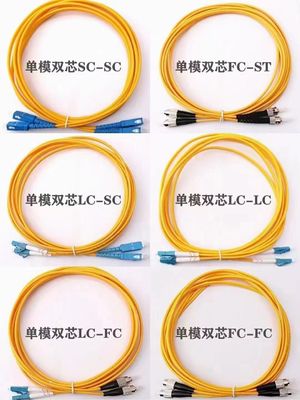

Fiber optic patch cords offer a variety of connector types, including LC, FC, SC, ST, MPO, MTP, and MTRJ. The most common connector type is LC, which is compact and easy to install. SC connectors are larger but offer superior performance. ST connectors are commonly used in legacy networks. MTRJ connectors are designed for high-density applications.
Polishing Types
PC (Physical Contact) connectors use microsphere polishing and grinding processes to effectively reduce the air gap between fiber optic components, enabling physical contact between the two fiber end faces. UPC (Ultra-Physical Contact) connectors are not completely flat at the end faces but are slightly curved for more precise mating. APC (Angled Physical Contact) connectors typically have an 8° bevel polished end face. This improves the adhesion of the fiber end faces and reflects light through the bevel into the cladding instead of directly reflecting it to the light source, resulting in better connection performance.
