Direct Duct GYTY53 Fiber Optic Cable 12 24 36 48 core Stranded laying wiring system
| محل منبع | شاندونگ ， چین |
|---|---|
| نام تجاری | EBOCOM |
| گواهی | ISO TLC |
| شماره مدل | GYTY53 |
| مقدار حداقل تعداد سفارش | 2000 متر |
| قیمت | EXW ≥2000m $0.19/M ≥5000m $0.18/M |
| جزئیات بسته بندی | 1. طبل چوب آهنی یا طبل چوبی غیر فوم ، طبل چوبی معمولی. 2. اندازه طبل را می توان طراحی کرد ، جزئیات م |
| زمان تحویل | 5-8 روز |
| شرایط پرداخت | T/T |
| قابلیت ارائه | 8000 کیلومتر در روز |
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsAPP:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| حداقل تعداد سفارش | 1 کیلومتر | جزئیات بسته بندی | طبل چوبی |
|---|---|---|---|
| زمان تحویل | 3-7 روز کاری | شرایط پرداخت | L/C ، T/T ، Western Union |
| محل مبدا | شاندونگ، چین | نام تجاری | eBoCom /OEM |
| صدور گواهینامه | ISO9001 ، ISO45001 ، ISO14001 | شماره مدل | GYTY53-24B1 |
| برجسته کردن | Direct Duct GYTY53 fiber optic cable,12 core stranded fiber optic cable,Outdoor fiber optic cable wiring system,12 core stranded fiber optic cable,Outdoor fiber optic cable wiring system |
||
توضیحات محصول
The GYTY53 fiber optic cable is primarily used for direct burial and duct installations in harsh outdoor environments due to its double-armored, double-sheathed, and water-resistant construction. Key applications include long-distance backbone networks, telecommunications infrastructure, and campus and industrial networks where mechanical, rodent, and moisture protection are essential
Features:
Direct burial: The robust armor and double sheath provide protection against crushing, mechanical impact, and rodents when buried directly in the ground.Duct installations: It is ideal for installation in conduits where protection from moisture and rodents is necessary.
Long-distance backbones: Its durable design makes it suitable for long-haul and inter-office communication lines that require a reliable and resilient cable.
Campus and industrial networks: It is used to connect networks over large areas like university campuses or industrial sites, often in "greenfield" situations where underground cabling is required.
Telecom and municipal networks: It serves as a primary choice for building out the infrastructure for telecommunications and municipal networks.
Application:
Suitable for direct buried, overhead, pipeline and other laying methods
MainTechnical Parameters:

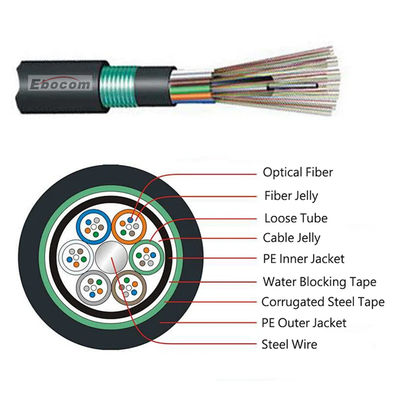

Cable construction details :
| Number of Fiber | 24-144core | |
| Filling Rope | 4-0 | |
| Moisture Barrier | Water blocking system | |
| Central strength member | Material | Steel wire/FRP |
| Size | 1.4mm | |
| Tube-filling | Tube Filling Compound | |
| Inner sheath | Material | PE/HDPE |
| Diameter | 2.0mm | |
| Loose tube | Material | PBT |
| Diameter | Ф2.2(outer/inner) | |
| Outer armored | Material | Aluminium tape/Corrugated steel tape |
| Outer sheath | Material | PE/HDPE |
| Diameter | 1.7±0.2mm | |
Structure and parameters GYTY53 optical cable
| Name | Fiber Count | Nominal diameter (mm) | Nominal weight (kg/km) | Maximum number of cores | Allowable tensile force (short/long term)
N |
Allowable flattening force (short/long term)
N/100mm |
| GYTY53 | 2-36 | 12.7 | 173 | 6 | 3000/1000 | 3000/1000 |
| 38-72 | 13.9 | 211 | 12 | 3000/1000 | 3000/1000 | |
| 74-96 | 15.5 | 251 | 12 | 3000/1000 | 3000/1000 | |
| 98-120 | 17.2 | 299 | 12 | 3000/1000 | 3000/1000 | |
| 122-144 | 18.8 | 345 | 12 | 3000/1000 | 3000/1000 | |
| >144 | Customized as customer’s request | |||||
